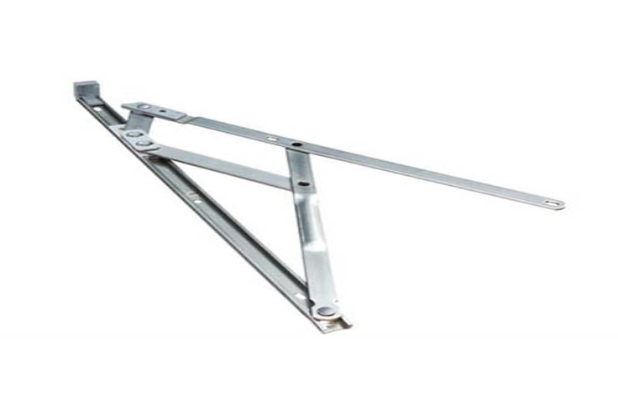

24” self balancing friction hinge. Higher capacity version. 13mm stack height version For Top Hung Application
Product Code: EDTH24A-Defender Plus
A heavy duty friction hinge.
Features
Ability to carry a load of up to 50kg top hung and 40kg side-hung
Asymmetric location system for reliable and accurate closure
Improved weather sealing and draught proofing performance from asymmetical vent arm
Top hung feature slot-hole-sole vent fixing configuration for ease of adjustment and guaranteed fixing into reinforcement on PVCu window frames
Enclosed end cap to prevent ingress of debris and provide increase cavity tolerance
Timber variant avaliable
Highline variant avaliable for deeper profiles with cavitites between 16mm and 18mm
Available in 24″ top hung and 16″ side hung
Specification
Tested to 30,000 cycles
Available in ferritic* and austenitic* stainless steel
10 or 12 Year Guarentee depent on material selection (details available upon request)
* Standard Ferritic (was 430) steel to BS EN 10088-2 Grade 1.4016 or Austenitic (was 304) stainless steel BS EN 10088-2 Grade 1.4301 for enhanced corrosion resistance.
