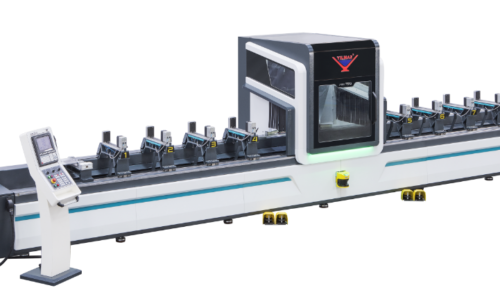

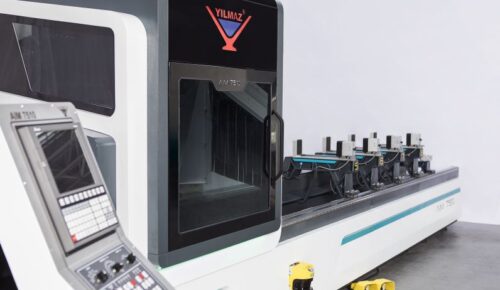

AIM 7510 is 5-axis servo-controlled machining centers which are is designed to perform drilling, grooving, notching, taping, saw milling, etc. on all kinds of aluminium & PVC profiles, light alloys in general and thin walled steel profiles. Efficient and economic processing on the five sides of the profiles is possible with this fully automatic machining centers. The moveable turret type of tool magazine equipped with 12 standard tools provides a fast tool change. It is housed in the mobile gantry to minimize the tool change time. An additional magazine for the saw blade with 350 mm dia. ensures the ease of machining on the exterior applications of the profiles. The machine can be used in tandem mode, a work method that allows machine stop times to be reduced to a minimum as it allows work piece change time (loading/unloading) to be performed ”while the machine is operating”. Automatic clamp recognition and clamp positioning is available.
GENERAL FEATURES
CNC automation system providing motion control at 5-axis
Uninterrupted machining property by means of the tandem mode to prevent waste of time
Ability of effective CAM programming by means of user-friendly CAM PROX program

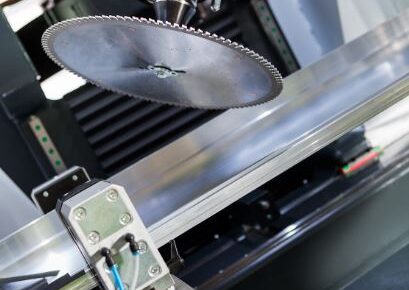

2 x separate magazine unit for 12 standard tools and 1 for saw blade with Ø350 mm
Solid steel construction of the body and dynamic performance gantry
Automatic clamp recognition and clamp positioning are available
Tapping feature from M5 to M8 for open holes and 1-4 mm of material thickness)(optional)
Special sound insulation cabinet around the machining center
High precision HSD spindle and internationally recognized components
CNC controlled spray tool lubrication system

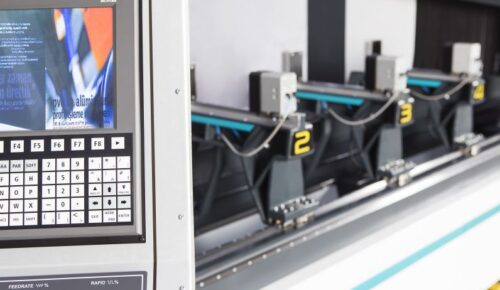

8x automatic clamps used for grabbing the work piece firmly
2x pneumatic rests used for resetting the work piece in X direction
Hand held controller allows you to prove the job before running at speed
Optimum operational safety guaranteed by 3-zone field scanner system
10’’ colour touch screen
Program import via USB flash memory stick
Standard ISO ‘G’ code programming language and multi-language support
Automatic central guide lubrication system and LED lighting in the cabinet
STANDART ACCESORIES
CAMPROX software program for CNC programming
Safety fence around the machine
8 x pneumatic profile clamps
2 x pneumatic rests
Chip pan in the machine frame
OPTIONAL ACCESSORIES
CAD-EXTRACT software program for working on IGES files
Special saw blade kit
Oil mist blower
Barcode reader
Barcode printer
Air conditioning system set
Adustable Clamp Pressure System
Individual Clamp Control Set (for 8 pcs. of clamps)
