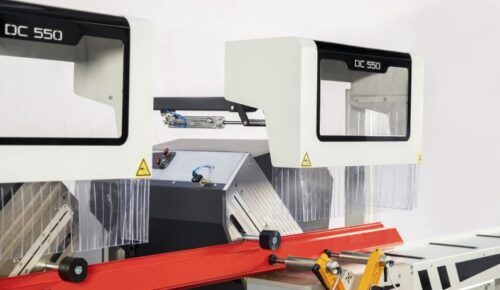

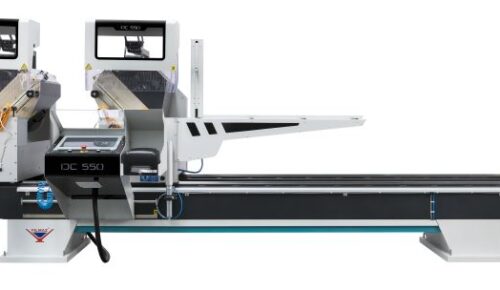

Full Automatic Double Head Mitre Saw Machine – DC 550 SKH
Product Code: DC 550 SKH
DC 550 SKH is full automatic sawing machines that is designed for the straight or angular cutting operations of large size of profiles made of PVC and aluminium materials by means of double head sawing units equipped with Ø 550 mm of saw blades.
GENERAL FEATURES
Two-hand safety operation
Equipped with CNC control system for precise angular adjustment
Tilting range inwards 45° and outwards 22.5°
Hydro-pneumatic saw feed
Cutting accuracy +/- 0.2 mm
2 x pneumatic profile supports

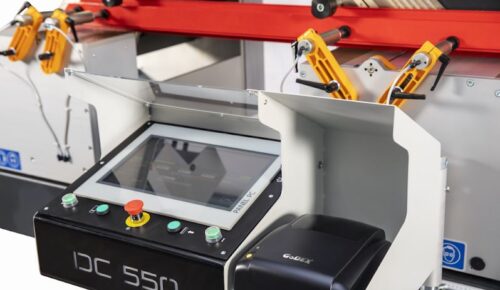

Windows based industrial PC and 15’’ LCD touch screen colour monitor
Facility to transfer the cutting list at ‘mdb’ and ‘csv’ formats via USB and network
Remote connection via internet and providing technical support
Barcode printer
Automatic slicing feature at 90° or 45° with fixed head
Profile height measuring systems
The angle setting of the cutting heads is ensured with servo control system
The position setting of the moving head is ensured with servo control system
