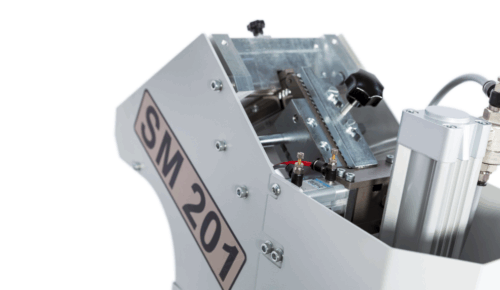

Fully Automated Single Head Reinforcement Steel Screwdriver-SM 201
Product Code: SM 201
Used for screwing of reinforcement steel on the PVC door and window profiles fast and precisely The PVC profile with the reinforcement steel inserted is manually driven into the screwing unit table and the screwing process is started with the pedal. Profile forward movement is done manually until the screwing process is completed.
GENERAL FEATURES
Automatic screw feeding unit
Foot pedal operation for screwing
Screwing force and point are adjustable for various kinds of profiles and their models
Long-lasting use and easy change of the bit
Automatic stop after finishing screwing
Safety key to prevent misuse
Special, adjustment key for the height of screw
Fixes the material firmly by automatic clamps to prevent movement during screwing
Adjustable resting distance for the supported type of profiles
Profile support arms on the left and right sides
Mechanical sensor on the head guarantees an optimum screwing process
Screw feed speed approx. 1.7 sec./pc.
Recommended reinforcement sheet thickness max. 3.0 mm
