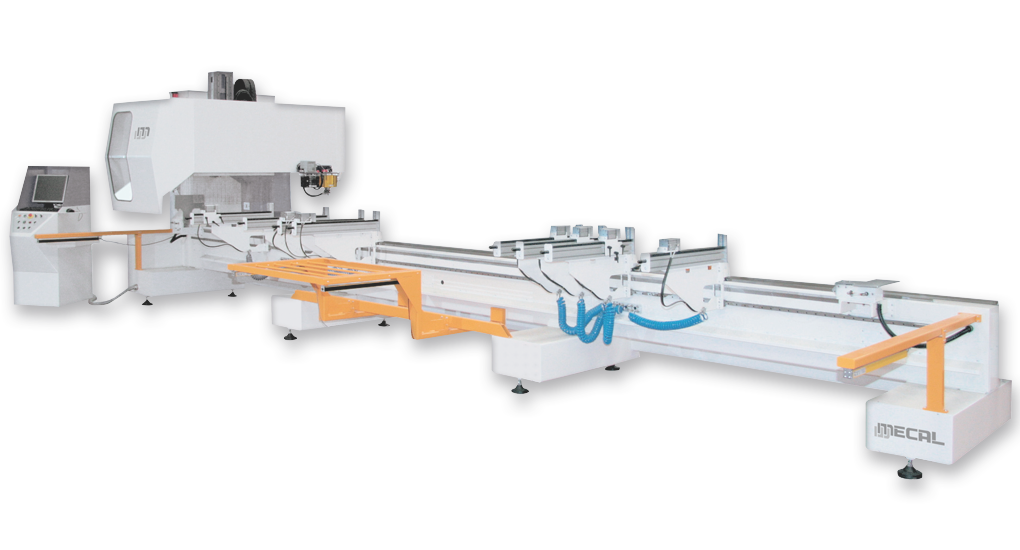

4-axis CNC Machining Centre
Product Code: MC 304 Atlas
- Suitable for frames and industrial sectors, thanks to its great working capacity.
- 3 axis (X, Y, Z) managed by CNC
- By means of dedicated tools it’s suitable for working on 5 sides of profiles.
| X axis stroke |
mm |
7460/9460/11460 |
| Y axis stroke |
mm |
1460 |
| Z axis stroke |
mm |
620 |
| Type of coupling holder |
ISO30 |
| Rated output (S1) |
kW |
5,5 |
| Type of cooling |
Air |
| Maximum Rotation Speed |
rpm |
18000 |
| Tool magazine |
N. |
8 |
| Height of the machine |
mm |
± 2300 |
| Width of the machine |
mm |
± 2300 |
| Length of the machine |
mm |
± 9500 |
| Weight of the machine |
kg |
± 5300/6300/7300 |
