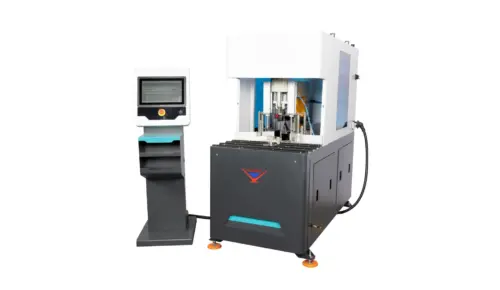

Corner Cleaning Machines are designed for the cleaning of welding chips of PVC profiles that is welded at angle of 90° CNC 609: 2 x servo drive motors, CNC 611: 4 x servo motor drives
GENERAL FEATURES
All unit parameters can be set independently according to the frames
Automatic frame and sash profile recognition system
Automatic line can be made by combining with Four Corner Welding Mach. (DK 540), Cooling Unit (SA 251) and Rotating Robot (SA 261) at a later date

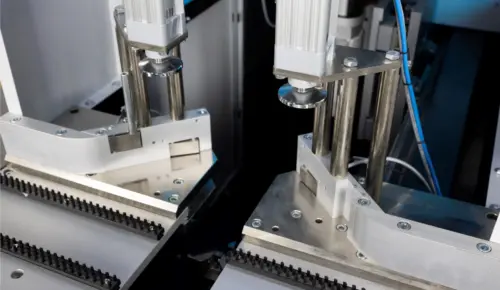

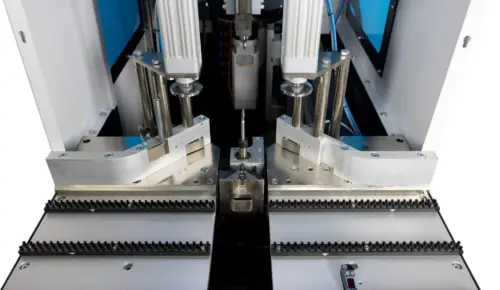

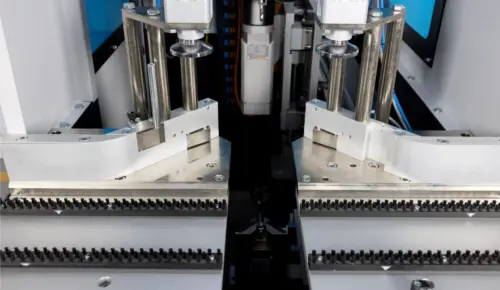

The upper and lower surfaces are cleaned with two separate cleaning units operating independently of each other (CNC 611)
Profile width and height measurement system
11 set of automatic profile cleaning knives
Separate cleaning knives for color and white profiles
Memory capacity for 65.000 different profiles
Windows based industrial PC and 15’’ LCD touch screen colour monitor
Remote connection via internet and providing technical support
Manual adjustment of feed rates on the control panel
Transferring facility of the new programs via USB

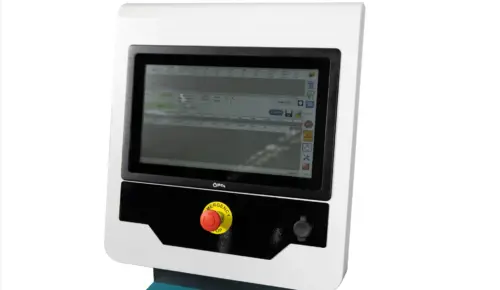

Portable touch screen control panel
Low pressure control valve
Automatic cartridge lubrication system
Phase control equipment
Processing capacity with 200-210 window frames in 8 hours for CNC 609
Processing capacity with 240-250 window frames in 8 hours for CNC 611
STANDART ACCESORIES
Total of 11 tools, consisting of a cleaning saw, internal scraping blades and milling cutters
