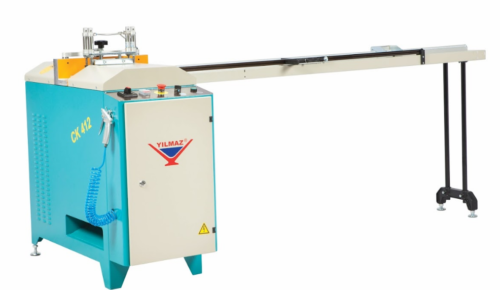

PVC Glazing Bead Saw-CK 412
Product Code: CK 412
CK 412 is an automatically operating cutting machine designed for 45 ° cutting of PVC glazing bead profiles.
GENERAL FEATURES
- Adjustable saw blade feeding speed
- Pneumatic saw feed by pushing button
- Equipped with 2x pneumatic vertical clamps
- Automatic return to start point of the process

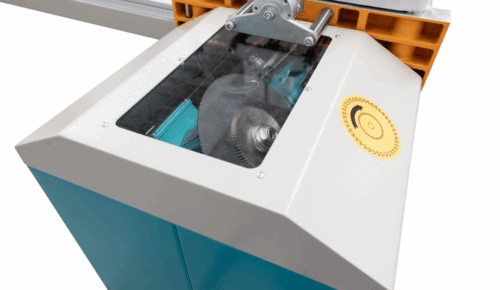

- Twin blade design
- Ability to cut 8 different glazing bead profiles without a mould by using mechanical memory
OPTIONAL ACCESSORIES
- Electrical foot pedal and regulator & monometer for the vertical clamps
- SKN 301 length stop together with 3.0 m of digital measuring unit
- MKN 300 length stop
- SKN 300 length stop
- SKN 600 length stop
- Digital measuring rod 3.0 m (for SKN 300 & SKN 600 application)
- Spare saw blade, Ø200 mm
- Spare saw blade, Ø103 mm
- Moulds for special glazing beads
- KN 152 roller conveyor for out-feeding
STANDART ACCESORIES
- 1x Ø 200 and 1x Ø 103 mm saw blades

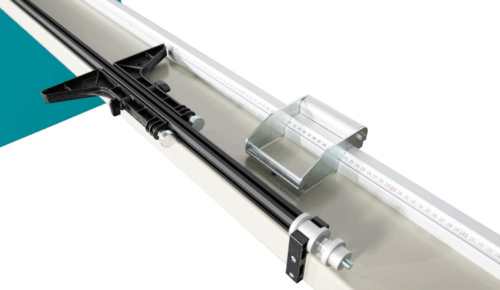

- KN 152 roller conveyor for in-feeding with manual measuring unit
- Air gun
