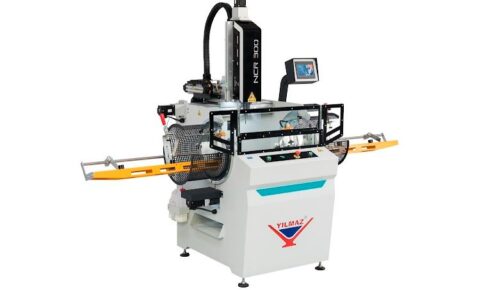

The new concept in numerical controlled (NC) copy routers, this single head copy router has the ability to program X, Y, Z and C coordinates with 4 axis servo – controlled motors. It is used for the processing of slots for locks, drilling handles, hinges, espagnolette holes and opening water drain slot on PVC and aluminium profiles, this means no more template.
GENERAL FEATURES
Designed for the daily operations on PVC, aluminium and low alloy materials to machine four surfaces of them at the same time

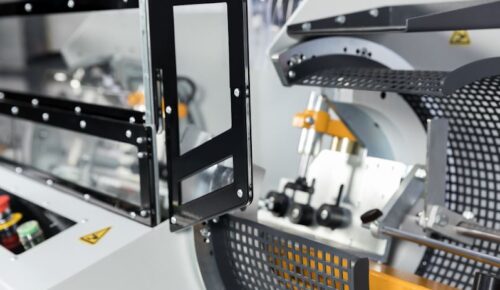

Equipped with servo-controlled table mechanism to stop the turning table and machining the profiles in angles among the 0°/90°/180/270°
Machinability of profiles up to 2750 mm of length by multi pop-up length stops
Machining capacity: X: 300 mm, Y: 120 mm, Z: 115 mm
Profile clamping width (Wmax. / Wmin): 120 X 30 mm
ER 16 tool collet
2.2 kW, 3P, 400V Spindle (12.000 RPM)
PLC control system
Electronic and pneumatic braking system for detaining falls of head and table
Profile clamping height (Hmax. / Hmin.): 115 X 30 mm
Profile clamping length: (Lmax. / L min.): 2750 X 400 mm
