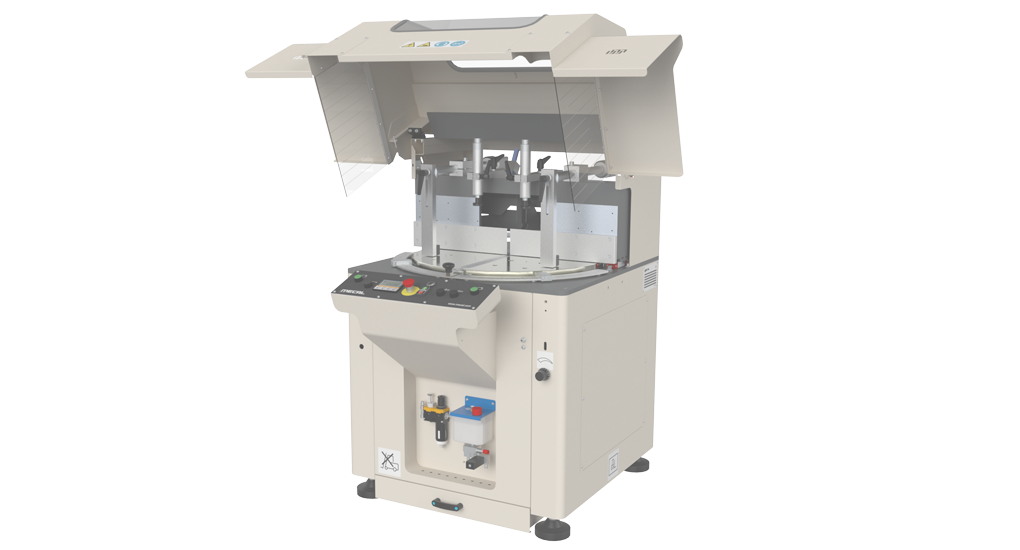

Single Head Cutting Machine – AS 600 Top Factory
Product Code: AS 600 Top Factory
- Manual rotation of the working table up to 20° both toward right that toward left.
- Quick positioning of the working table on pre‐selected angles (90°, 45°).
- Manual positioning at any intermediate angle, with pneumatic locking.
- DIGIT = with digital display for the angular positioning of the cutting plane.
- MQL = Lubrication tool with Minimal Quantity Lubrication
| Rotation capacity of the cutting unit toward right |
° |
20 |
| Rotation capacity of the cutting unit toward left |
° |
20 |
| Diametre of the sawblade |
mm |
600 |
| Sawblade bore |
mm |
50 |
| Speed of the rotating tool |
rpm |
2800 |
| Power of the motor |
kW |
4 |
| Length of the machine |
mm |
± 920/1520 |
| Width of the machine |
mm |
± 1320 |
| Height of the machine |
mm |
± 1525/1800 max |
| Weight of the machine |
kg |
± 470 |
