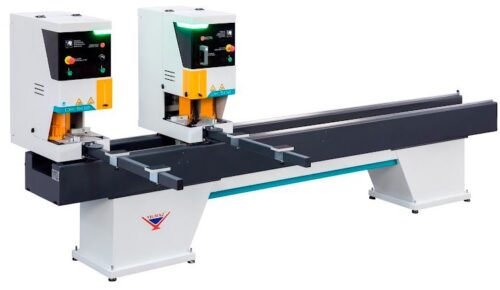

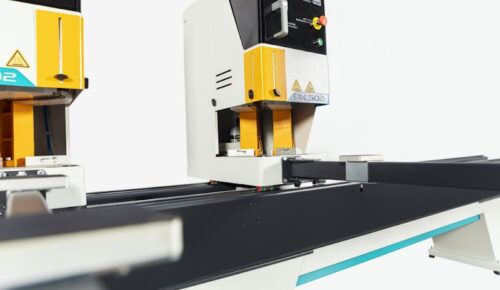

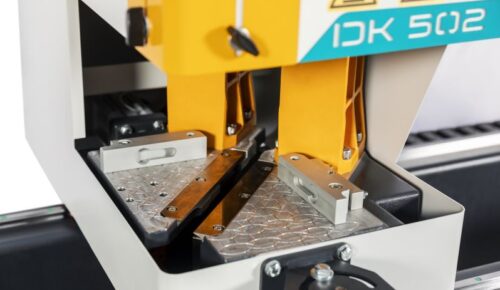

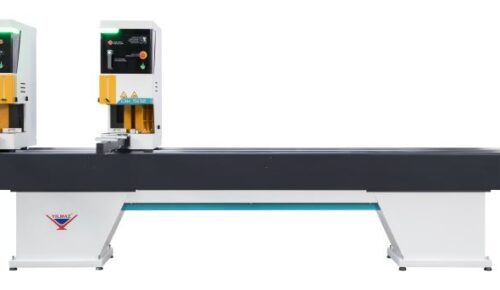

Double Corner PVC Welding Machine-DK 502
Product Code: DK 502
Machine is ideal for welding process of PVC plastic profiles at two corners.
GENERAL FEATURES
- Fully automatic two corner welding of PVC window profiles at an angle of 90°
- Single head welding possibility
- Possibility of precise welding of profiles between 30°-180° on the left head
- All parameters such as melting and welding time, welding pressure are set on the control panel independently
- Continuous precision of welding quality by means of linear rails
- Welding of two corners of window frames or sash profiles are carried out in one cycle
- User friendly with practical teflon change feature by means of the roller system
- Saving of time by means of most practical mold change system in the market
- Capable of adjusting the clamp and welding pressure according to the profile type
- Adjusting the heat between 0-300°C via electronic thermostat
- Practical setting of standard (2 mm) or seamless (0.2 mm for free of flashes) welding options
- The movable right unit moves manually
- After clamping the profiles, the welding is carried out automatically
- The moveable right welding unit is equipped with a brake system
- For safety reasons, the clamp pistons operate with low pressure control system
OPTIONAL ACCESSORIES
- Special welding molds on demand
STANDART ACCESORIES
- Equipped with two pcs.of support arms
