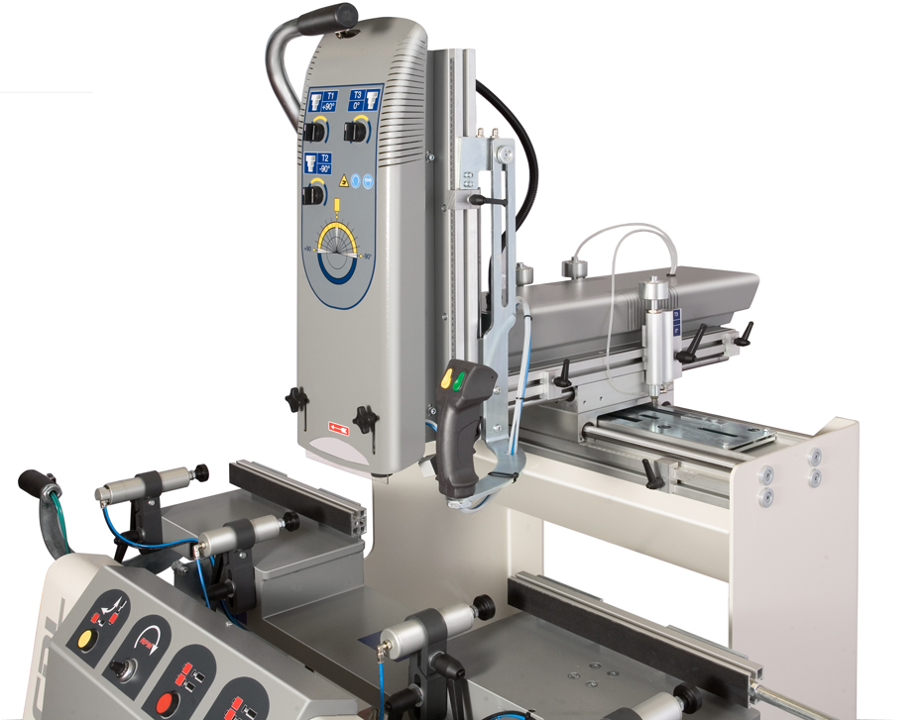

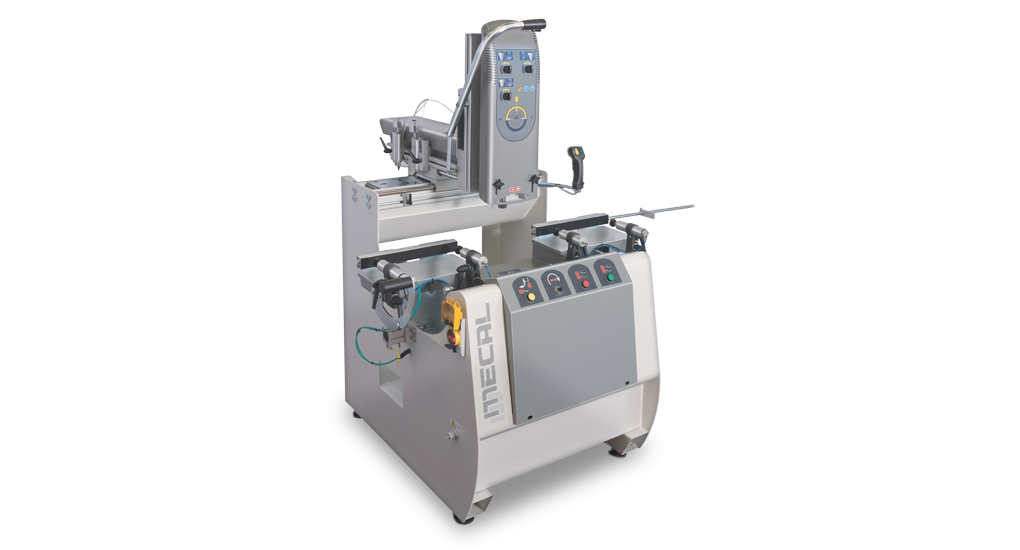

One-spindle copy router
Also suitable for working on steel.

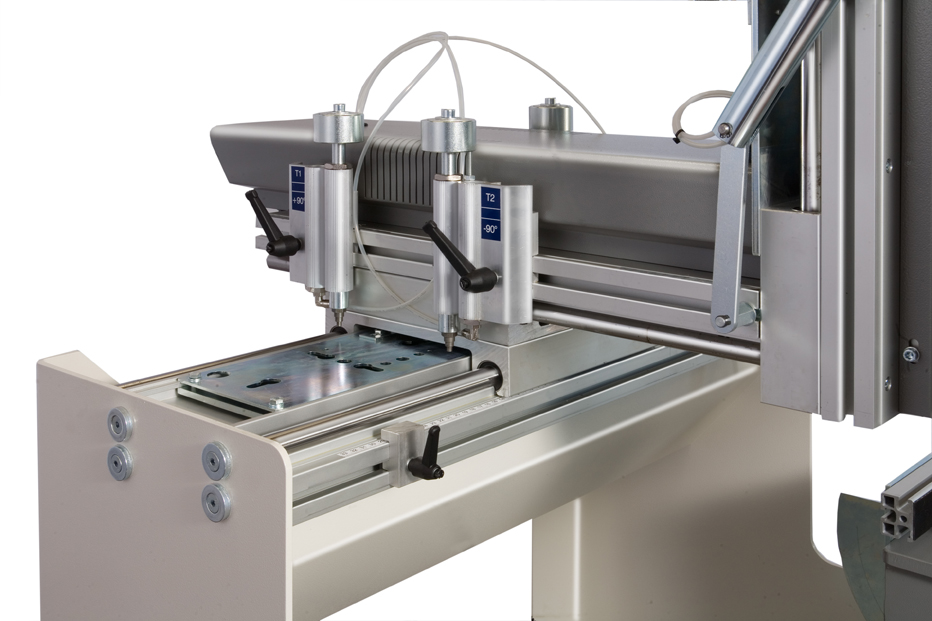

The piece hold by pneumatic clamps mounted on a tilting support can be pneumatically tilted on any positions, between -90° and+90°.
Suitable for passing workings.
Manual working cycle.

View Technical Data
Routing capacity mm 290×185
Vertical stroke mm 200
Clamping capacity mm 170×135
Speed of the rotating tool rpm 2800-12000
Power of the motor kW 1,1
Height of the machine mm ± 1800
Width of the machine mm ± 1160
Length of the machine mm ± 1300
Weight of the machine kg ± 260
