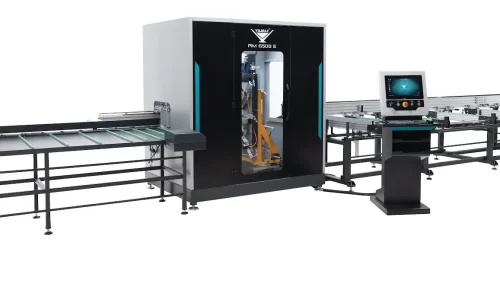

PIM 6508 SE is 8-axis CNC controlled machining center which is specifically designed to process any kind of PVC profiles in the market. The machine can do all operations on four sides of PVC profiles such as milling, opening key holes, water slots, hinge holes, handle holes, marking, saw blade cutting etc. PIM 6508 SE has the programming feature which provides minimum waste and maximum amount of production. 7 pieces of PVC profiles can be placed on the feeding conveyor of the machine and 3-axis pneumatic gripper moves them into the milling & cutting center for the milling and cutting operations. The cutting unit can serially cut profiles at the desired angle between 45°-135°.Operator attaches barcodes on the processed profiles to make them ready for welding operation.
GENERAL FEATURES
Fully automated feeding, carrying, positioning, cutting and transferring units

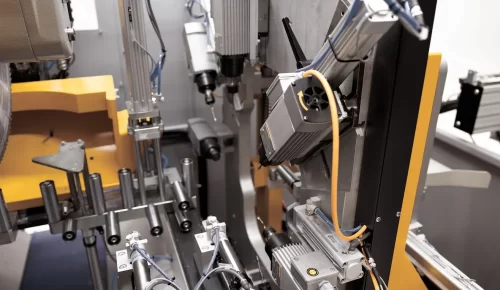

Performing operations on four sides of PVC profiles such as milling, opening key holes, water slots, hinge holes, handle holes, marking, saw blade cutting etc.
Servo controlled pneumatic gripper for accurate positioning of the profile
Horizontal and vertical clamping of workpiece during the sawing operation

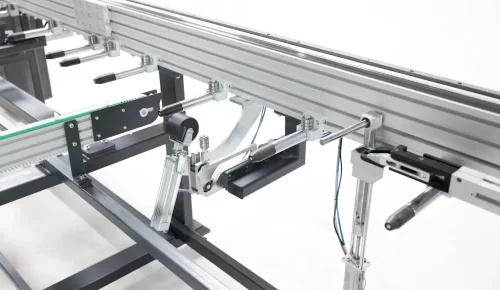

Automatic in-feed conveyor with 5 pcs. of profile loading capacity
Servo controlled down-cutting saw blade with Ø 500 mm dia. that rotates between the range of 45⁰ and 135⁰
Windows based PC and 15.6’’ LCD touch screen monitor
Remote desktop connection and providing technical support
User friendly interface software that is compatible with CAD programs
Ability to perform milling and cutting operations at the same time
Easy integration with the CNC welding, corner cleaning and screwing machines
Automatic frame and sash profile recognition system
Automatic profile width and height dimension control system
Cartridge & manual lubrication system
Low pressure control for saw blade safety operations
LED interior lighting
OPTIONAL ACCESSORIES
Angled swarf conveyor
Profile rotating mechanism
KP 3500 chip vacuum extractor
Spare Ø500 mm saw blade
Workshop logistic equipment (see the tech. document)
Spare Ø5xL95 mm carbide cutter bit
STANDART ACCESORIES
Totally 7 pc of tools, consisting of milling and drilling cutters.
