Semi Automatic Reinforcement Steel and Profile Multi Cutting Machine-SDT 280
Product Code: SDT 280

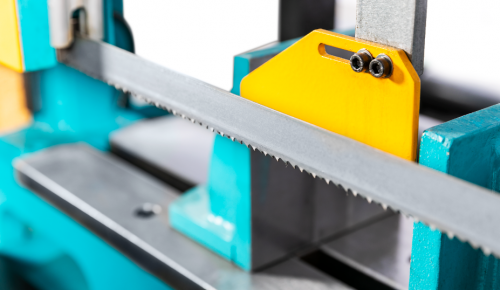

Semi-automatic, linear way band saw machine which is constructed of heavy gauge steel frame and grinded pillars provide a high degree of accuracy when cutting. It makes the cutting hydraulically. For the next cut, the bundled material is fed manually until it touches the length stop and the cutting is repeated. Ideal for the cutting operations of multi-cutting backing sheets mounted on solid bars, profiles and reinforcements for PVC windows.
GENERAL FEATURES

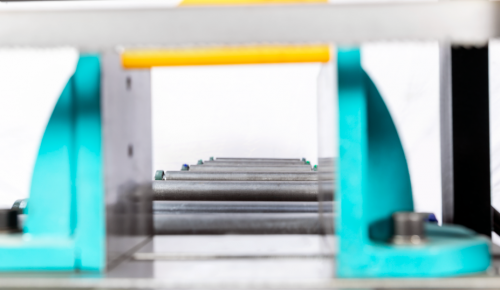

Hydraulic top clamping unit holding the bundled materials firmly
Hydraulically operated band saw tension mechanism
2 x adjustable micro spray cooling units
Band saw frame that can move up and down hydraulicly
Speed control unit that adjusts the band saw speed according to the material
Speed control valve that adjusts the band saw downward speed according to the material
Band saw frame made of hard steel and chrome coated and grinded two pillars providing a high degree of accuracy
Chip brush that cleans the band saw during the cutting operation
OPTIONAL ACCESSORIES
STANDART ACCESORIES
3 meters of infeed roller table placed on the entrance of the machine
Chip conveyor unit that removes the cutting chips from the environment
2° inclined bimetal band saw fitted on the machine bow
