Template Copy Router Machine with Triple Hole & Water Slot Drilling-CRM 201 S
Product Code: CRM 201 S
It is used for the processing of slots for locks, drilling handles, triple, hinges, espagnolette holes and opening water drain slot on PVC and aluminium profiles CRM 201S Template copy router with triple holes and water slot drilling features.
GENERAL FEATURES

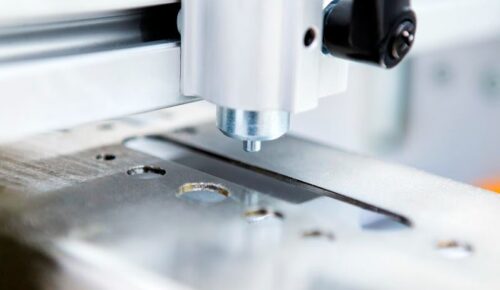

Copy mechanism operates manually and the figures on the template are machined at 1:1 ratio
The aluminium profiles up to 3 mm of wall thickness can be machined with a strong spindle motor
The cutting fluid controlled with a joystick is sprayed to the milling spot
Slots in varied lengths and widths can be opened without using the copy milling template
The length of the water drain slot is adjustable on the template
Copy milling motor is directly controlled via joystick
Reference stops at 2 sides of the milling machine
Standard equipped with inlet-outlet profile supports
Ergonomic hand control unit
On the horizontal axis there is triple hole drilling mechanism
Pneumatically working water slot opening system
Equipped with whole cutter bits
OPTIONAL ACCESSORIES
Spare Ø5xL80 mm cutter bit (for copy routing operations)
Spare Ø5xL60 mm cutter bit (for water drain operations)
Spare collets for Ø5 mm of cutter bit
Spare Ø10 mm cutter bit (for triple drilling operations)
Spare Ø13 mm cutter bit (for triple drilling operations)
Special copy templates
STANDART ACCESORIES
Equipped with tools for copy routing and water drain operations (1 pc. x Ø5xL80 mm and 1 pc. x Ø5xL60 mm)
•Equipped with tools for triple drilling mechanism (2pc.X ø10 mm, 1pc. X ø13 mm)
