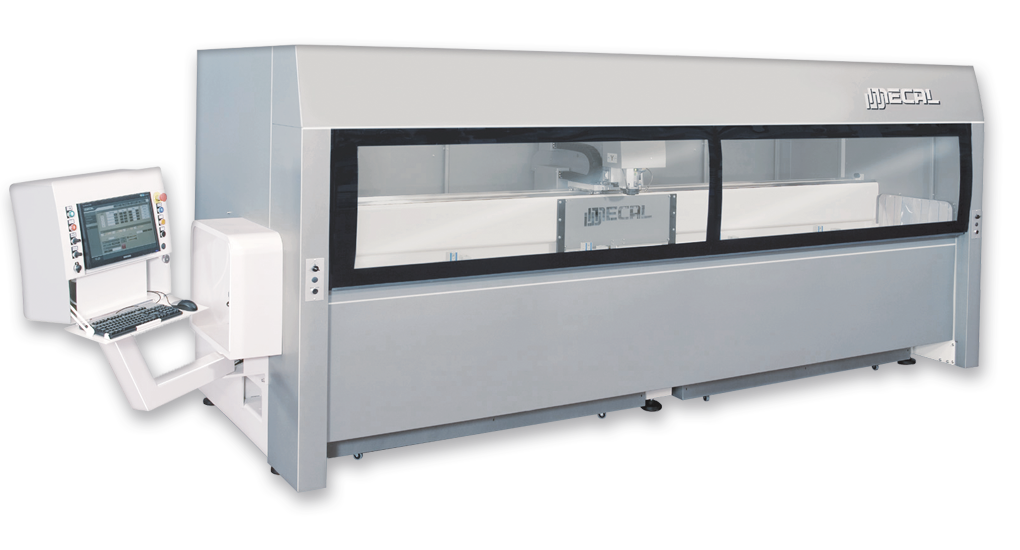

4-axis CNC floor-type vertical spindle machining center – Kosmos
Product Code: MC 305 Kosmos TM MMI
- TM = Mobile Beam.
- MMI = version provided with a device activated by a pneumatic/electronic combination dedicated to the automatic contemporary movement of the clamps.
- Suitable for the machining of aluminum extruded profiles for residential architecture, and even for light steel shaped profiles.
- 4 axis (X, Y, Z, A) managed by CNC.
- By means of dedicated tools it’s suitable for working on 5 sides of aluminium, PVC and steel sections.

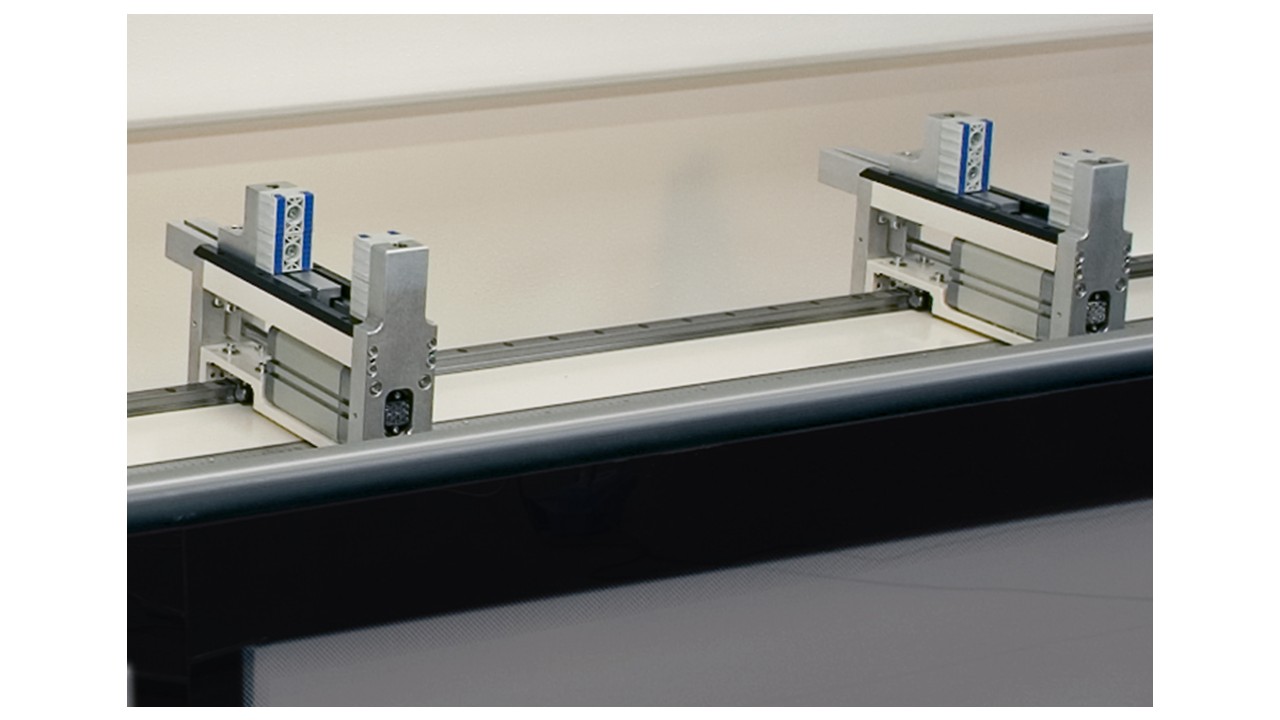

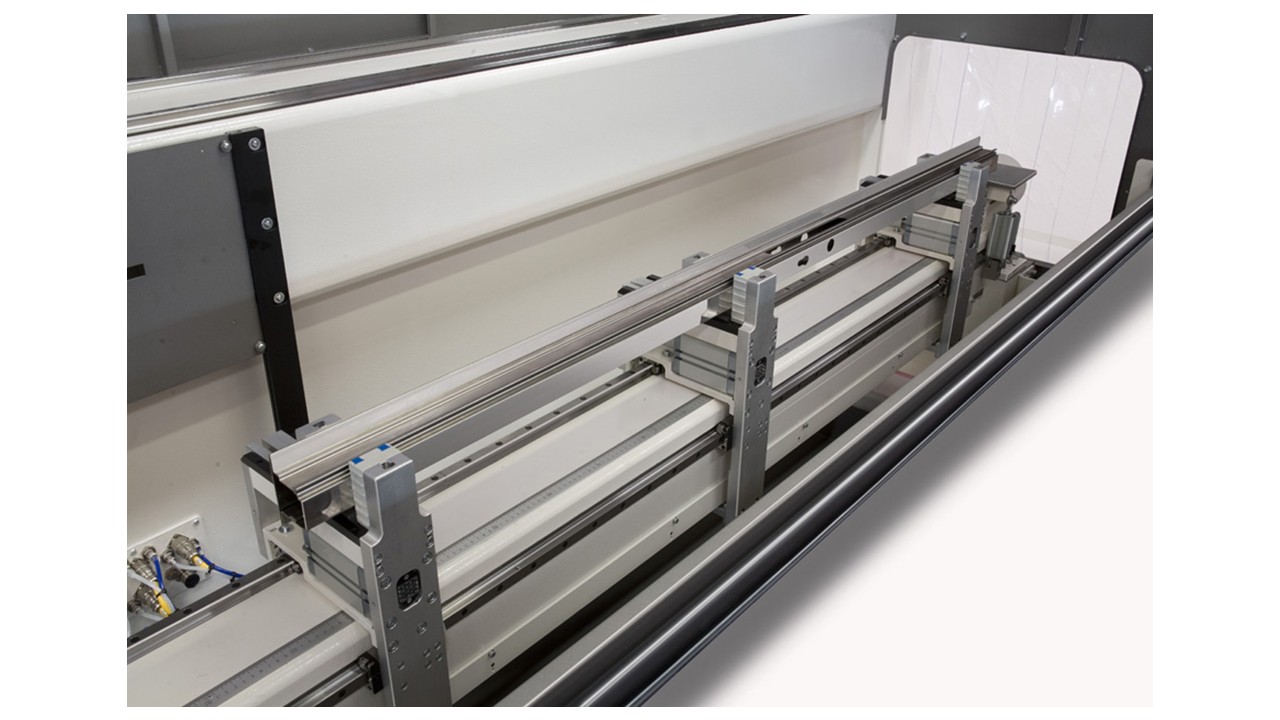

- The workpieces are fixed with 4 pneumatic clamps, sliding on the rocking beam. The beam can be positioned at any angle within ± 125°.

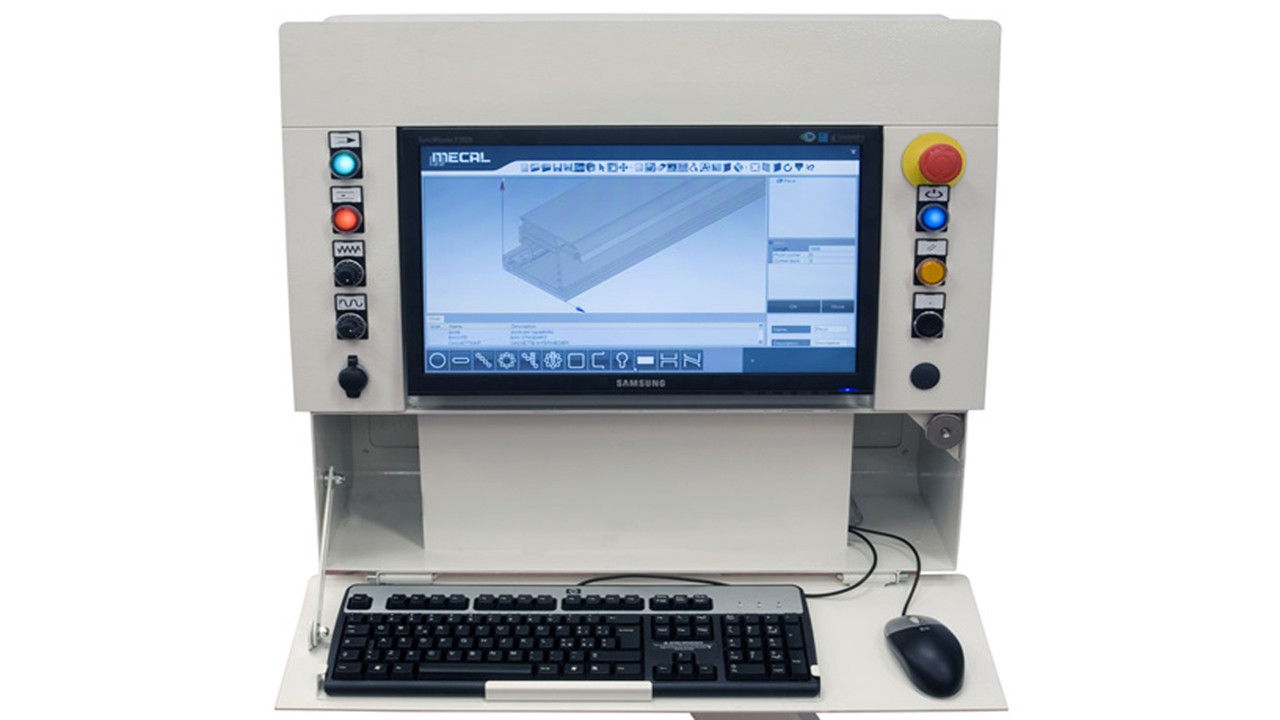

- The rotation is directly managed by the control cycle.
| X axis stroke |
mm |
4225 |
| Positioning speed X-axis |
mmm/1’ |
80 |
| Y axis stroke |
mm |
530 |
| Positioning speed Y-axis |
m/1’ |
30 |
| Z axis stroke |
mm |
410 |
| Positioning speed Z-axis |
m/1’ |
30 |
| A axis stroke |
deg |
± 125° |
| Electrospindle rated power |
kW |
6.0 |
| Cooling system |
Air |

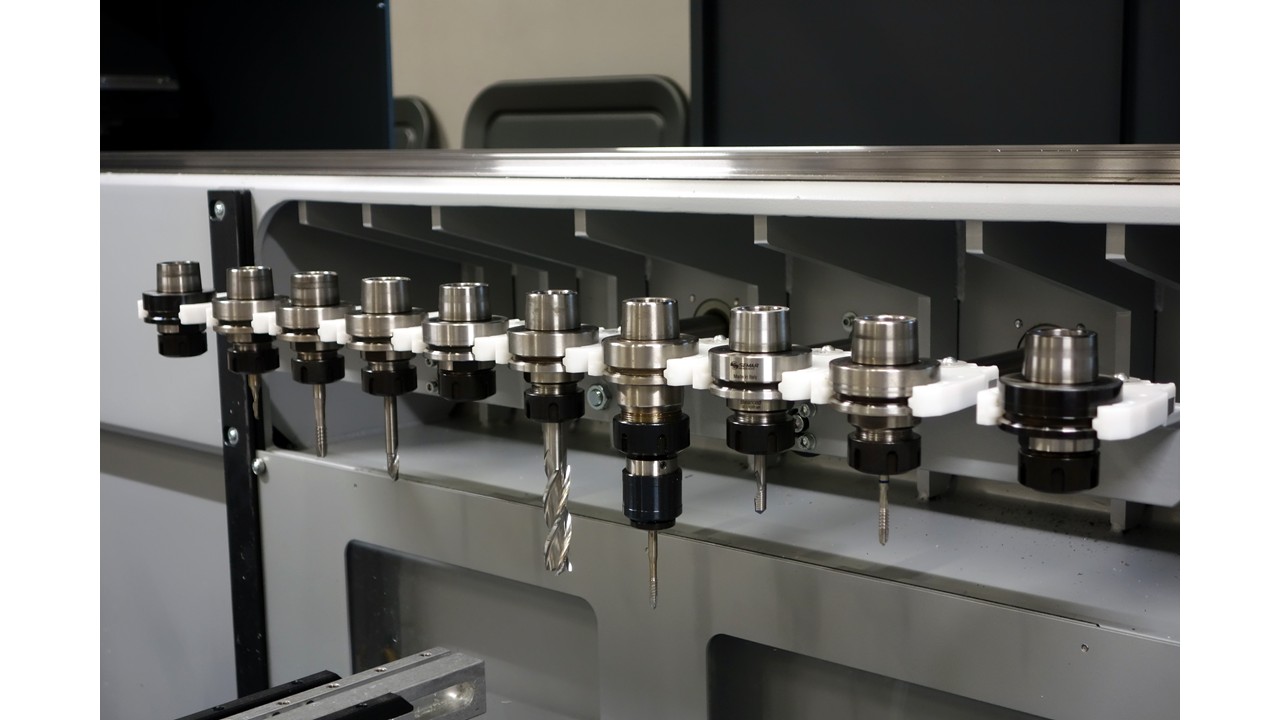

| Tool holder cone |
ISO30 |
| Max rotation speed |
kg |
18000 |
| Weight |
kg |
± 3200 |
