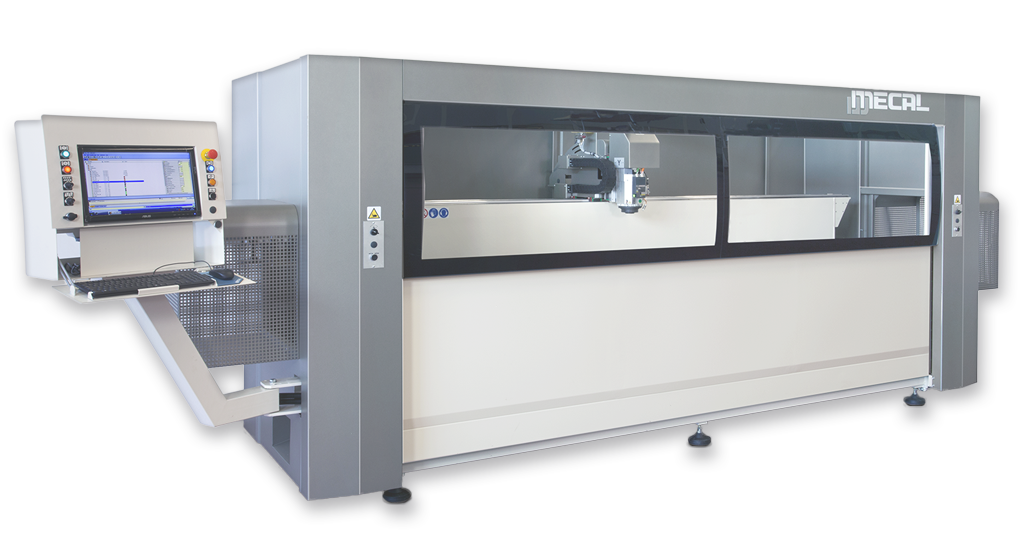

4-axis CNC Machining Centre with verticle spindle (X,Y,Z,A)
Product Code: MC 309 Nike
- 3 axis (X, Y, Z) controlled by CNC + 1 axis pneumatically managed.
- Suitable for the machining of aluminum profiles for the sector of windows and door.
- The clamps beam (A axis) can be rotated on three orthogonal positions (-90°, 0°, +90°) by pneumatic cycle.
- The work pieces are held by means of 4 pneumatic vices on the mobile beam, that can be positioned on any angle between +90° and -90°.
- The rotation is directly managed by the control cycle.
| X-axis stroke |
mm |
3500 |
| Positioning speed X-axis |
mmm/1’ |
70 |
| Y-axis stroke |
mm |
370 |
| Positioning speed Y-axis |
m/1’ |
30 |
| Z-axis stroke |
mm |
348 |
| Positioning speed Z-axis |
m/1’ |
30 |
| A axis stroke |
deg |
± 90° |
| Electrospindle rated power |
kW |
3,8 |
| Cooling system |
Air |
| Tool holder cone |
ISO30 |
| Max rotation speed |
rpm |
18000 |
| Weight |
kg |
± 2200 |
