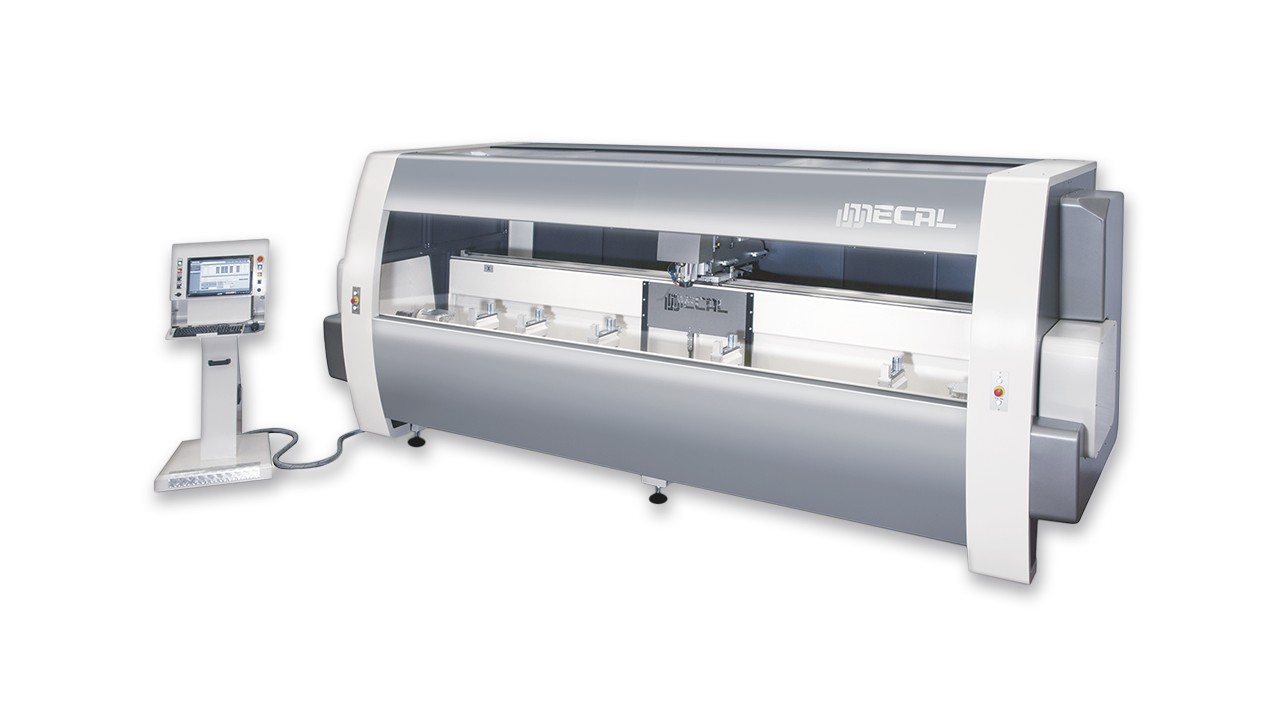

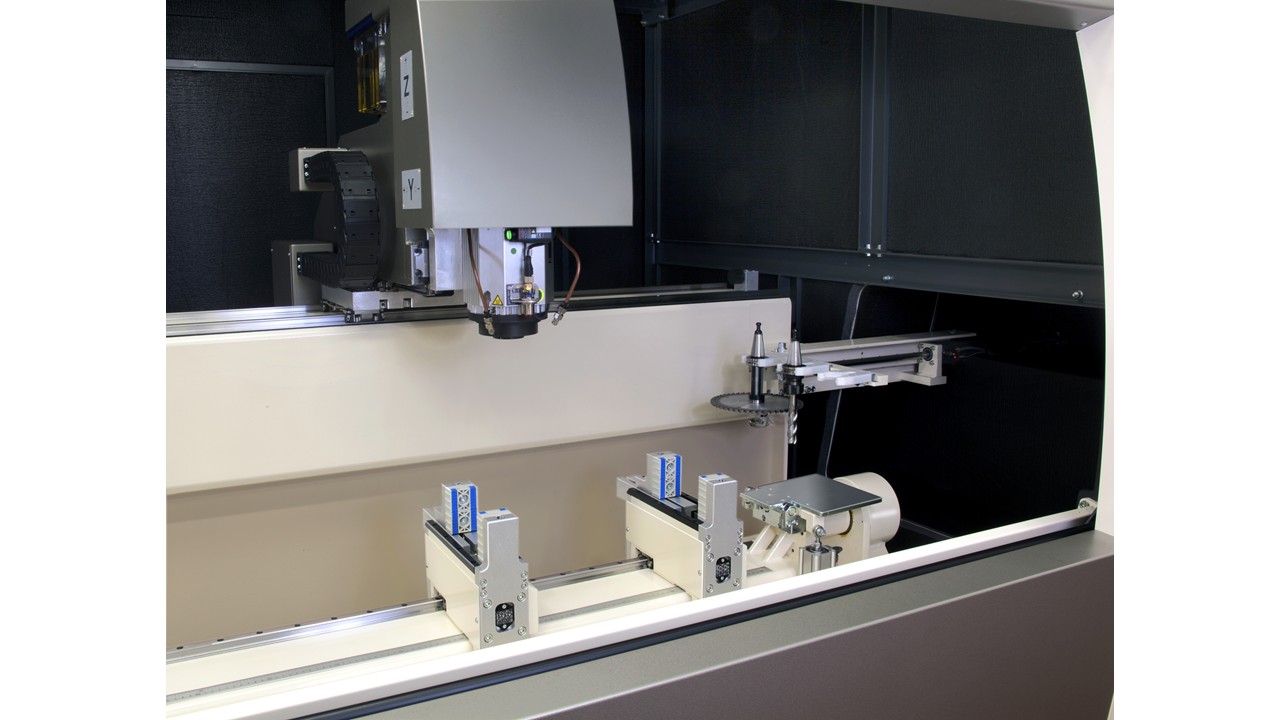

4-axis CNC machining center
Product Code: MC 307 FALCON TM MMI
- MMI = version provided with a device activated by a pneumatic/electronic combination dedicated to the automatic contemporary movement of the clamps.
- 4 axis (X, Y, Z, A) managed by CNC.
- Fully equipped with digital technology.
- Compact, fast and flexible, adapted to suit any requirement.
- Able to work on aluminium, light alloys, PVC and steel profiles.

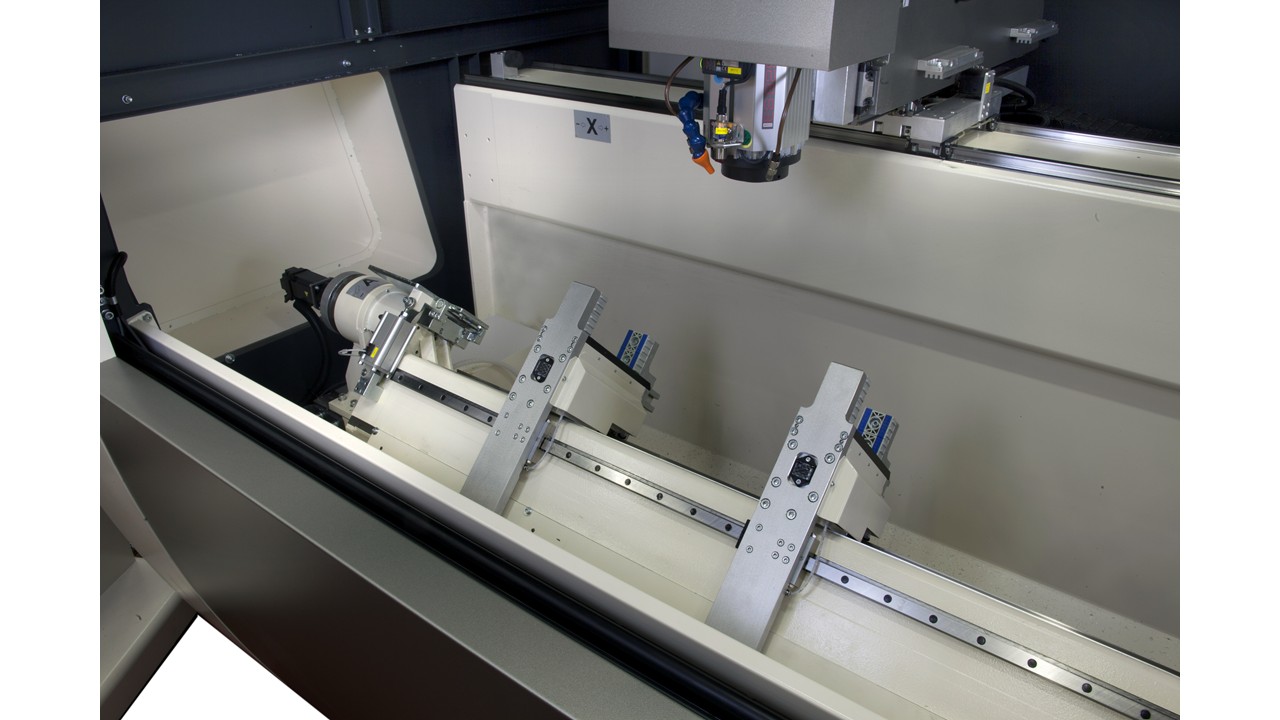

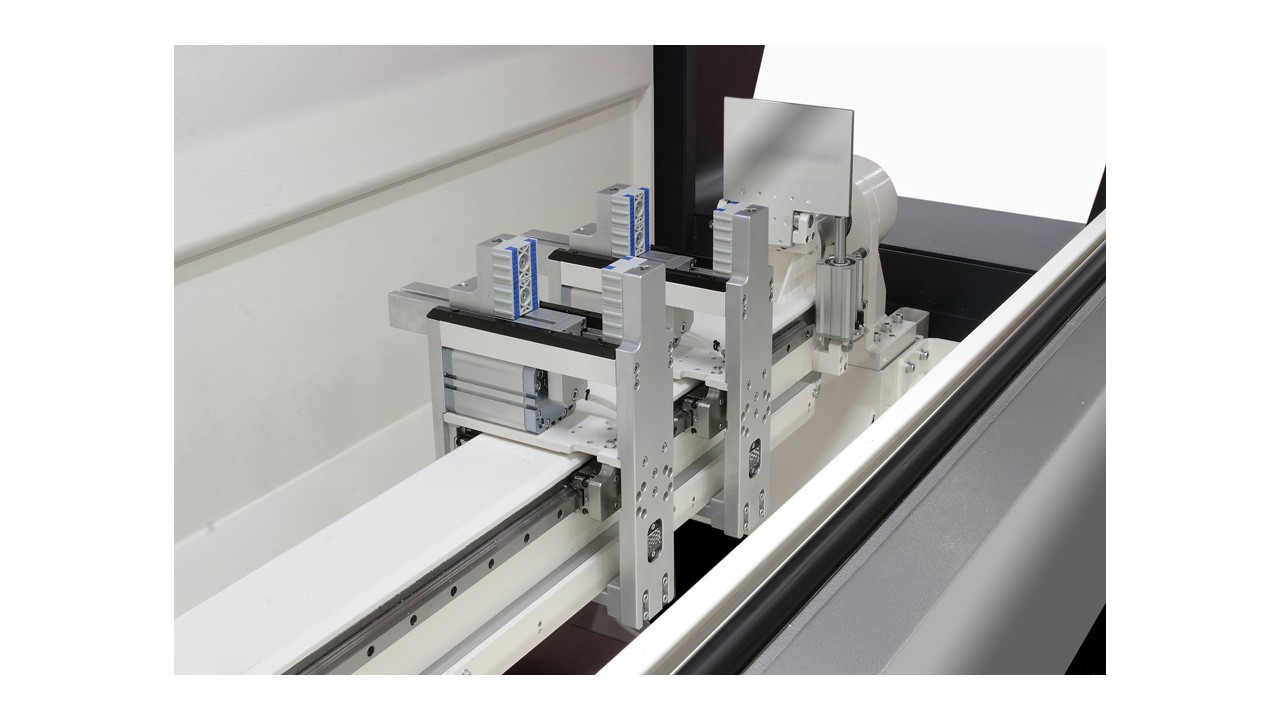

- The workpieces are fixed with 5 pneumatic clamps, sliding on the tilting beam. The beam can be positioned at any angle within ± 125°.
- Workable section: 300 x 150 mm (YxZ).
| X-axis stroke |
mm |
4275 |
| Positioning speed X-axis |
m/1′ |
150 |
| Y-axis stroke |
mm |
530 |
| Positioning speed Y-axis |
m/1’ |
40 |
| Z-axis stroke |
mm |
410 |
| Positioning speed Z-axis |
m/1’ |
40 |
| A axis stroke |
deg |
± 125° |
| Electrospindle rated power |
kW |
8,5 |
| Max rotation speed |
rpm |
24000 |
| Tool holder cone |
HSK F63 |
| Diameter of disc cutter (max.) |
mm |
200 |
| Weight |
Kg |
± 3500 |
